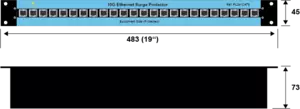

19'' patch panel surge protector for high speed network STP
PL24-CAT6
Part Number 581515
- Surge protector for CAT6
- 24 ports
- 19'' patch panel 1 U
- 100/1000/10Gigabit Ethernet network compliance
- Connectors RJ45 shielded
- Bi-directionnel
Datasheet
The PLx-CAT6 are surge protection devices in 19" format and offer protection against lightning and surge voltages for sensitive interfaces connected in a Gigabit Ethernet network. The protection circuit consists of a highly efficient combination of 3-pole gas arresters and low-capacitance diodes. The protection components are connected via standard RJ45 plugs. Up to 24 ports can be protected with the PL24-CAT6. The 19'' format allows easy installation in all standard 19'' cabinets.
|
Network
|
10 Gigabit Ethernet, Cat.6 cabling | |
|
Nominal line voltage
|
Un | 5 Vdc |
|
Max. DC operating voltage
|
Uc | 8 Vdc |
|
Max. frequency
|
f max. | 250 MHz |
|
Max. data rate
|
10/100/1000 Mbps | |
|
Insertion loss
|
< 1 dB | |
|
Max. load current @25°C
|
IL | 1000 mA |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
|
Up | 20 V |
|
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
|
Up | 20 V |
|
Max. capacitance
|
C | < 25 pF |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 500 A |
|
Line/Line Nominal discharge current
C2 Category
|
In L/L | 500 A |
|
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
|
In L/PE | 2000 A |
|
Technology
|
GDT+TVS diode | |
|
SPD configuration
|
24 ports de 8 wires | |
|
Connection to Network
|
RJ45 shielded female input/output | |
|
Format
|
Rack 19'' | |
|
Mounting
|
Baie 19'' | |
|
Housing material
|
Aluminium | |
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 | |
|
Outdoor application
|
No | |
|
Failsafe mode
|
Short-circuit | |
|
Disconnection indicator
|
Transmission interrupt | |
|
Spare module(s)
|
12-port PCB | |
|
Remote signaling of disconnection
|
No | |
|
Pinout
|
(1-2)(3-6)(4-5)(7-8) | |
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-21 / EN 61643-21 / UL497 B / IEEE 802-3an |
